Pressure gauges are instruments for measuring and displaying the pressure of a medium. Pressure gauges are pressure measuring instruments with elastic pressure elements, which have been used millions of times in various industrial applications. Depending on the area of application of the pressure gauge, Bourdon tubes, diaphragm elements or capsule elements are used as pressure elements.

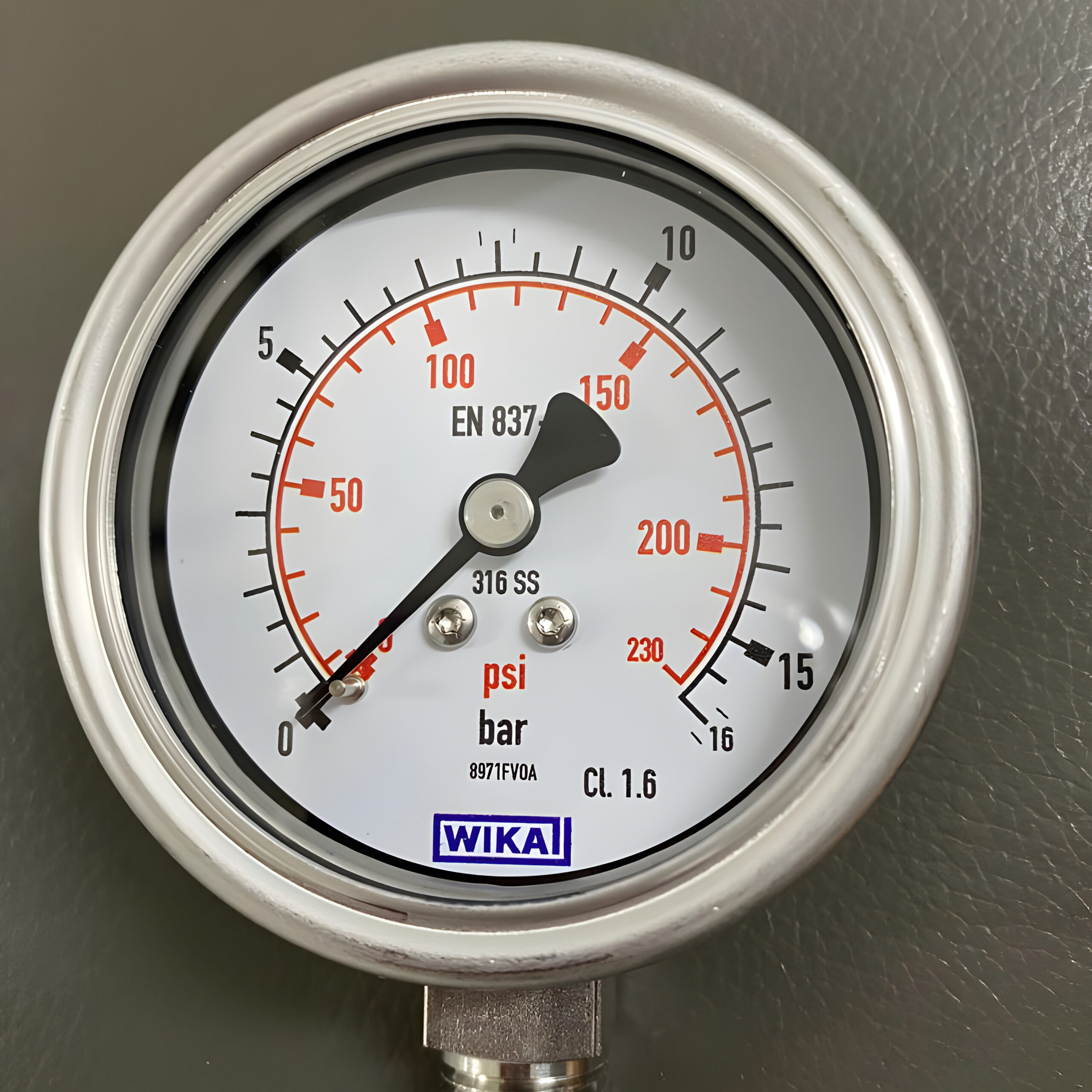

Bourdon Tube Pressure Gauges
| Bourdon Tube Pressure Gauges | |
| Nominal Size | •40mm •50mm •63mm •80mm •100mm •160mm |
| Pressure Range | •up to 1000bar(63mm) •up to 1600bar(100mm) •<16mbar |
| Connection Location | •Lower Mount •Back Mount |
| Welted Material | •Copper Alloy(Brass) •Stainless Steel |
| Process Connection | •NPT thread •BSPP thread •others |
| Accuracy | •Class 1.6 •Class 1.0 |
